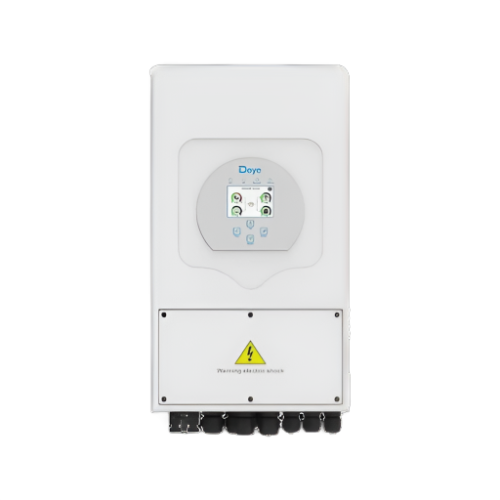

Deye 5KW Single Phase Hybrid Inverter VOC:500V Battery:48V CT & Wifi

Introducing the Deye 5kW Single Phase Hybrid Inverter – your gateway to efficient energy management. Equipped with a vibrant touch LCD screen, this inverter seamlessly integrates into your solar system. It supports both DC and AC coupling, making it perfect for retrofitting existing systems. With the capability to run in parallel, it offers flexibility for on-grid and off-grid scenarios, even allowing multiple battery parallel connections. This hybrid inverter comes with 6 time periods for optimized battery charge and discharge, and it can even store energy from a diesel generator. With a sleek wall-mounted design, smart cooling, and a rugged IP65 protection degree, it’s built to withstand diverse environments. Explore the future of energy control with the Deye 5kW Hybrid Inverter.

Elevate your energy management with the Deye 5kW Single Phase Hybrid Inverter. This advanced inverter seamlessly blends technology and efficiency, delivering exceptional performance for your solar energy needs.

Designed with user convenience in mind, the inverter boasts a colorful touch LCD screen that provides an intuitive interface for easy monitoring and control. Its remarkable versatility shines through with both DC and AC coupling, enabling the retrofitting of existing solar systems without hassle. Whether you’re looking to enhance your on-grid or off-grid operation, this inverter supports a maximum of 16 units in parallel, allowing for expanded capacity and multiple battery parallel connections.

One of the standout features of this hybrid inverter is its battery charge/discharge scheduling, offering six distinct time periods. This empowers you to optimize energy usage according to your preferences and needs. Moreover, the inverter offers the unique capability to store energy from a diesel generator, ensuring no energy goes to waste.

The Deye hybrid inverter is not just about performance – it’s designed to endure. With an IP65 protection rating, it confidently withstands various weather conditions, ensuring consistent operation. Its noise level of under 30dB ensures minimal auditory impact, making it a discreet yet powerful addition to your setup.

Key Specifications and Features :

• Maximum Charge/Discharge Current: 120A
• Charging Strategy: Self-adaptation to Battery Management System (BMS)
• Maximum DC Input Power: 6500W
• MPPT Range: 125-425V with 2 x MPPT
• AC Output & UPS Power: 5000W with a maximum AC Power of 5500W
• AC Rated Output Current: 221.7A
• Maximum AC Current: 25A
• Exceptional Efficiency: Maximum Efficiency of 97.60%, Euro Efficiency of 96.50%, and MPPT Efficiency of 99.90%
• Battery Compatibility: Supports Lead-acid or Lithium-ion batteries (sold separately)
• Battery Voltage Range: 40-60V
• Communication: CAN/RS485 interface for seamless BMS communication
• Smart Cooling system for optimal performance
• Wide Operating Temperature Range: -25°C to 60°C, with derating beyond 45°C
• Installation: Wall-mounted design for space efficiency
• Weight: 20.5Kg
• Dimensions (W x H x D): 330 x 580 x 232 mm

Warranties:

All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
